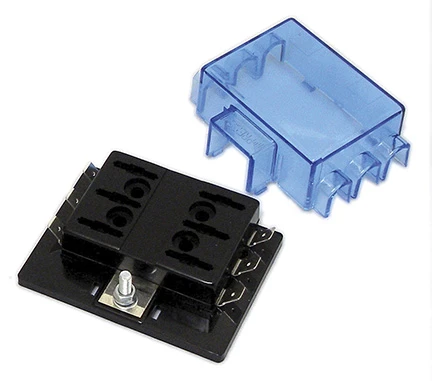

ATO/ATC Fuse Panels With Cover

Accepts ATO/ATC fuses or plug-in circuit breakers. logo_ROHS_HR

  • #10-32 stud terminal with hex nut, flat washer and lock washer supplied.
  • 1/4"Spade Terminals.
  • Four .218 diameter mounting holes for #10 screws.
  • Base: Polycarbonate, Cover: Clear polycarbonate.
  • Maximum amperage per circuit: 25 amps, Maximum voltage: 32VDC, Maximum amperage per block: 150 amps.
  • IP Rating: 40
Click to enlarge
Model  Description  Length  Height  Width
31050-76 Position ATO/ATC Fuse Panel with Cover3.36"1.10"2.51"
31052-78 Position ATO/ATC Fuse Panel with Cover3.36"1.10"3.13"
31054-710 Position ATO/ATC Fuse Panel with Cover3.36"1.10"3.74"
31056-712 Position ATO/ATC Fuse Panel with Cover3.36"1.10"4.39"
Maximum amperage per circuit: 25 amps, Maximum voltage: 32VDC, Maximum amperage per block: 150 amps.
