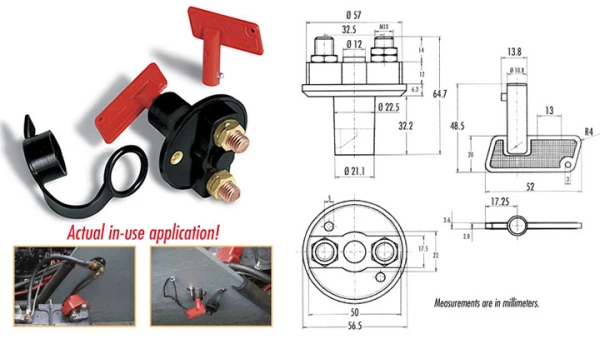

Water-Resistant Master Battery Disconnect Switch

  • Water-Resistant Master Battery Disconnect Switch Excellent for Marine or Automotive Use logo_ROHS_HR
  • Rated 100 Amps Continuous, 500 Amps Surge at 12 Volts
  • Rated 50 Amps Continuous, 250 Amps Surge at 24 Volts
  • 2-1/4" Diameter x 2-1/2" Deep (1-1/4" Deep Behind a Panel)
  • Two 3/16" Diameter Mounting Holes
  • For use in Line on the Negative Battery Cable
Click to enlarge
Model  Includes
20314Kit: 1 Switch, 1 Water-Resistant cover, & 2 Keys
20312-7Water-Resistant cover only
20315-7Switch with 1 Key, unpackaged (Water-Resistant cover not included)
20316-7Key only
